Features:
- Up to four times more volume
- Increases audio clarity
- 2 Individual outputs
- Drives headphones up to 600 Ohms
- 12 Volt Powered
- Connects to motorcycle and car Aux inputs
For use with:
- iPods / Mp3 players
- Satellite radios
- GPS systems
- Smartphones
Connecting the Revolution
The Boostaroo Revolution is very easy to connect. Plug the 12V power plug into the power source on your motorcycle or car, and the power jack of the Revolution. Then plug the 1/8" audio cable into the output of your audio player and the input of the amplifier. All that’s left is to plug your aux input, helmet, or speakers into one of the Revolution's two outputs.
Hard Wiring or Powerlet Plugs
The noise reduction and power circuitry is located directly inside of the Revolution. To hard wire to your bike, or use a Powerlet adapter. Simply, remove the 12V head of the power cable and wire to your bike, or Powerlet adapter. We do recommend adding a small 1-1.5V in-line fuse when hard wiring, but it is not required.
Using the Revolution in Your Car
You can connect the amplifier into the (AUX) input on your car stereo, or use an FM transmitter.
Technical Specifications

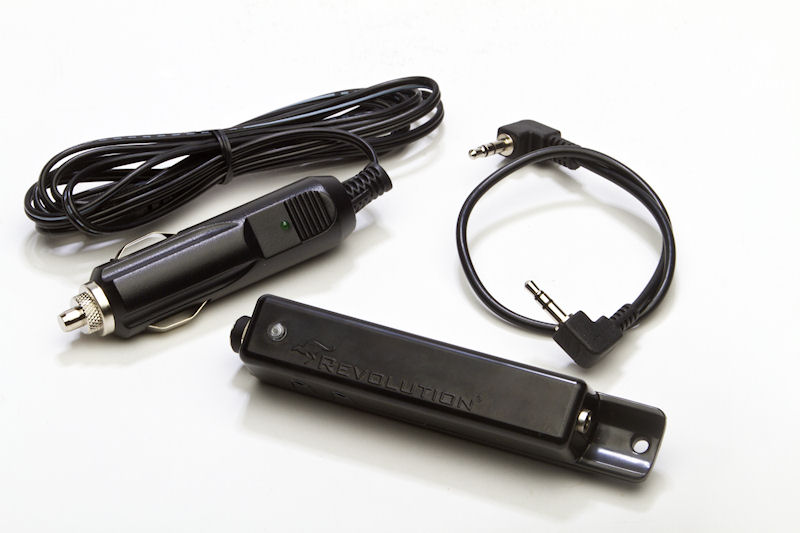

Package Includes:
1-Boostaroo Revolution Amplifier
1-12V DC power cable 5 ft.
1-12 in. Stereo 3.5mm audio cable
1-Owners manual
1-90 day money back guarantee
1-One year warranty
Made in the, USA.
Input:
Input: One 3.5mm (1/8") Stereo Jack
Impedance: 5K Ohms @ 1Khz
Output:
Outputs: Two 3.5mm (1/8") Stereo Jacks
Impedance: 5.5 Ohms
40 mW per channel
22 dB boost
THD: less than 0.5%
Frequency Response:
20 to 20,000Hz +/- 2 dB
Signal to noise ratio 110dB
Power Requirements:
12 Volts DC @100 mA Input 3.3 Volts @70mA
Product Dimensions:
Size 4.4” x .875” x.832”
Unit weight 4 oz, 10 oz with included accessories
|
