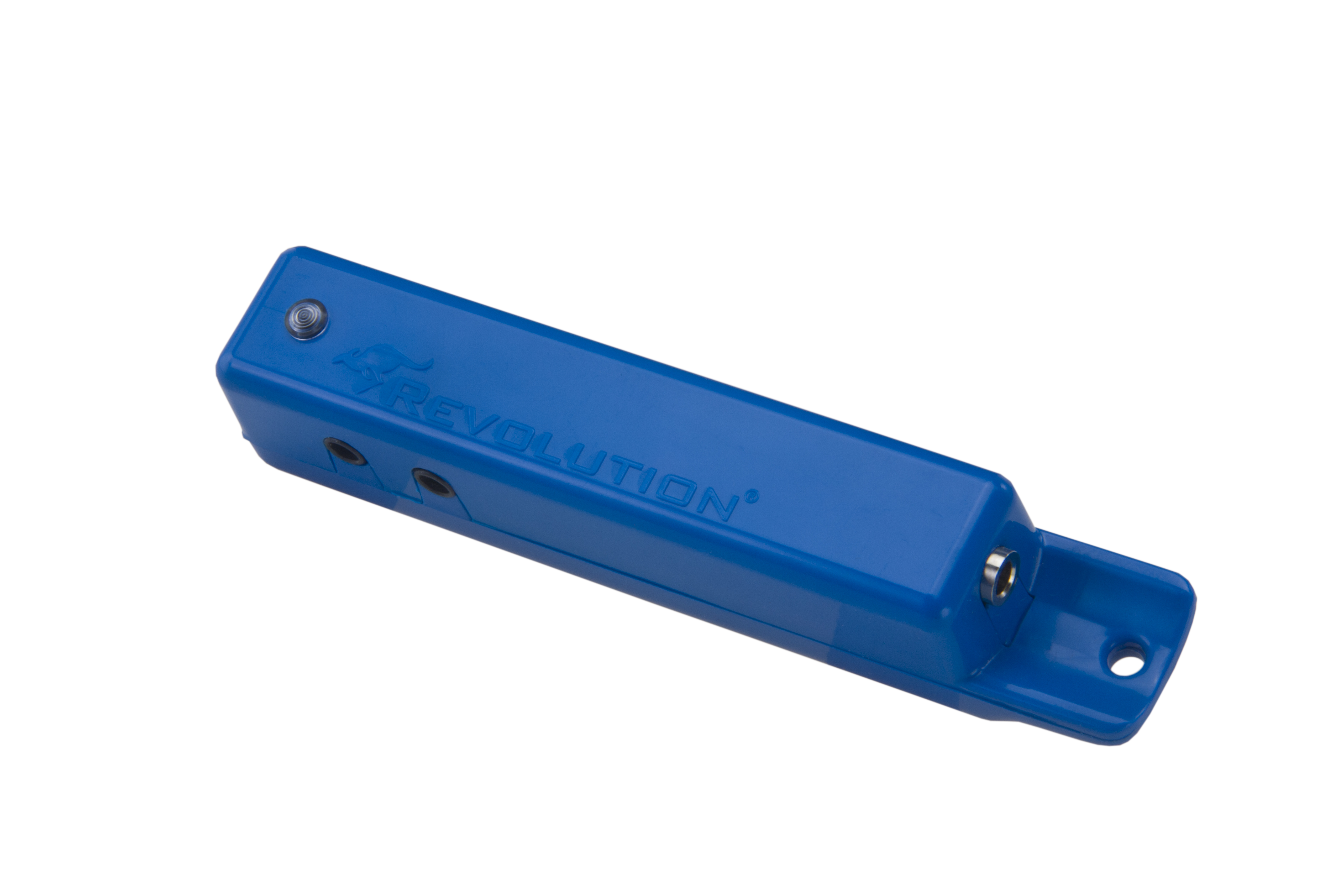

The Revolution is a portable audio amplifier designed to increase the volume to headphones, earphones, and PC speakers. The Revolution works with a variety of audio devices:
- iPod/MP3 players, cell phones
- Satellite radios
- GPS systems
- PCs and laptops
The Revolution Features:

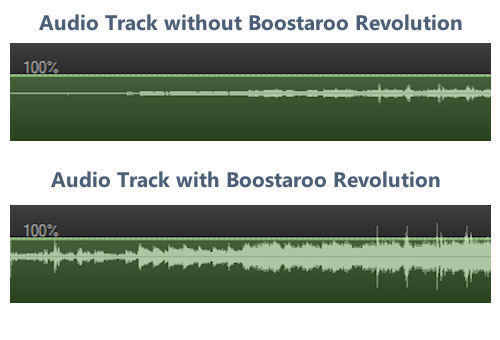

- Up to a four times volume increase
- Detailed audio enhancement
- 2 Audio outputs
- 40 hour battery life
Package Includes:
1 - Blue Boostaroo Revolution Amplifier
2 - (AAAA) Energizer Batteries
1 - Stereo 3.5mm (1/8") Audio Cable
1 - Owner's Manual
Proudly made in the USA.
Backed by a 90-Day Return and 1-Year Warranty. If you are unhappy with our amp, or it stops working properly, you can return it or we'll replace it.
How to Connect the Revolution
The amplifier is very easy to connect to your audio player. Think of it as an extension of your headphones. Simply plug the input cable into the output of your audio player. All that's left is to plug your headphones, or speakers into one of the Revolution's two outputs and you're good to go.
Tech Specs for Model: R234-BLU
Input: One 3.5mm (1/8") Stereo Jack
Impedance: 5K Ohms @ 1Khz
Output: Two 3.5mm (1/8") Stereo Jacks
Impedance: 5.5 Ohms
32 mW increase per channel @ 32 Ohms
12 dB boost per channel
THD (Harmonic Distortion): less than 1.0%
Frequency Response: 20 to 20,000Hz +/- 3 db
Signal to noise ratio -110db
Power Requirements:
3 Volts DC by 2 1.5V AAAA Batteries
Product Dimensions:
Size 4.3" x .875" x.832"
Unit weight 3 oz, 6 oz with 2 batteries
Color: High Gloss Blue Finish
